Panaou LED Flexibil RGB RX-7120 121x121 cm Falcon Eyes

The RX-7120 by Falcon Eyes is a very large flexible LED panel, which is characterized by its high light output and simplistic appearance. The size is 121x121 cm and the LED panel is only a few millimetres thick. The RX-7120 incorporates no less than 5,280 LEDs with a total power output of 600 watts. The CRI value of 95+ ensures natural colours. A light output of 32,200 lux at half a meter provides more than enough light in many conditions. The light is flicker-free, so you can use it for both photos and videos. The adjustable colour temperature of 2700K-9999K allows you to perfectly match the light of the RX-7120 to the ambient light. The full RGB spectrum can be displayed, allowing you to display a colour of your choice. The RX-7120 runs on mains power.

Lux Waardes 5600K 3200K

0,5m 32.200 29.300

1m 15.300 13.500

2m 5.350 4.690

Mounting RX-7120

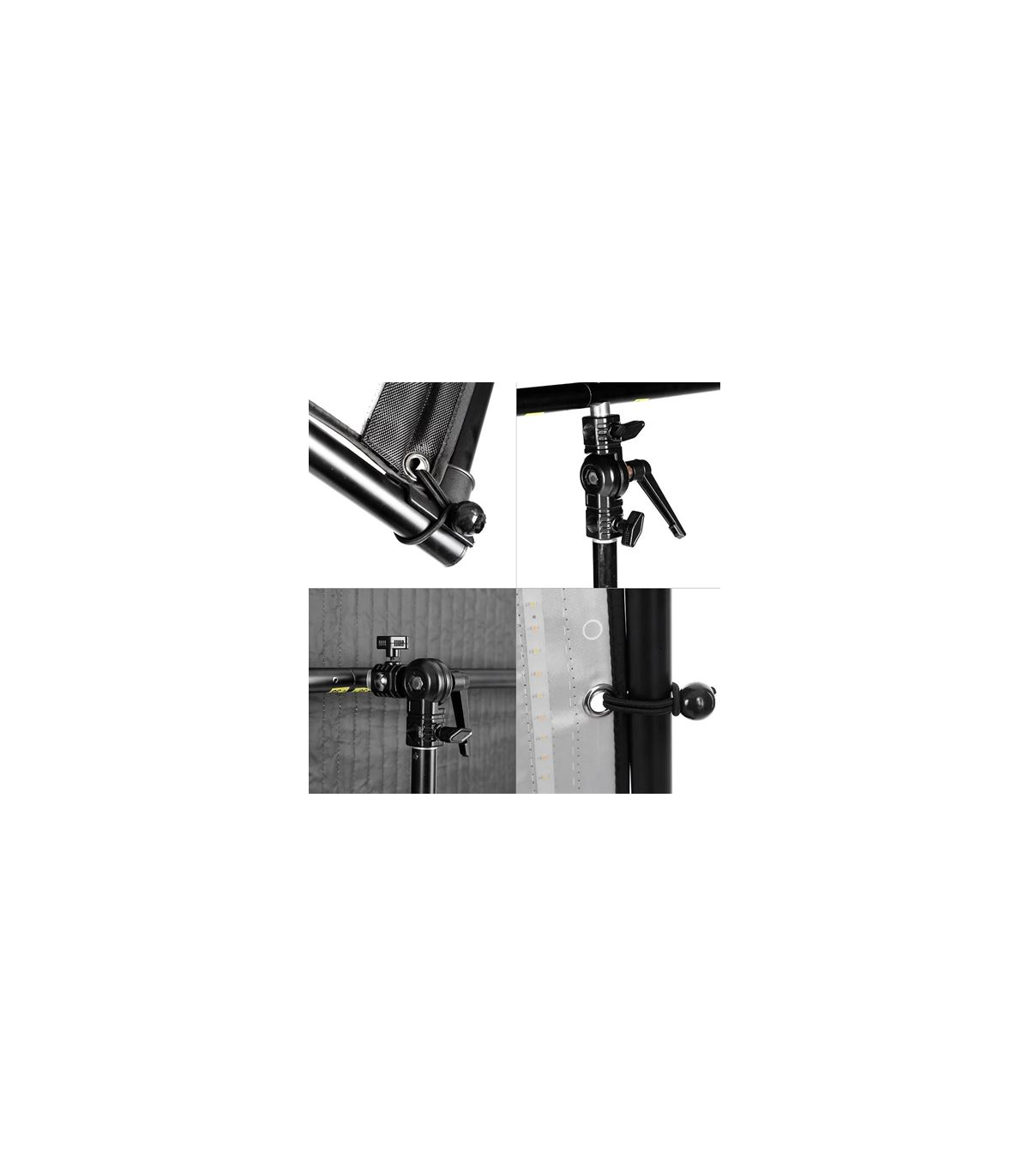

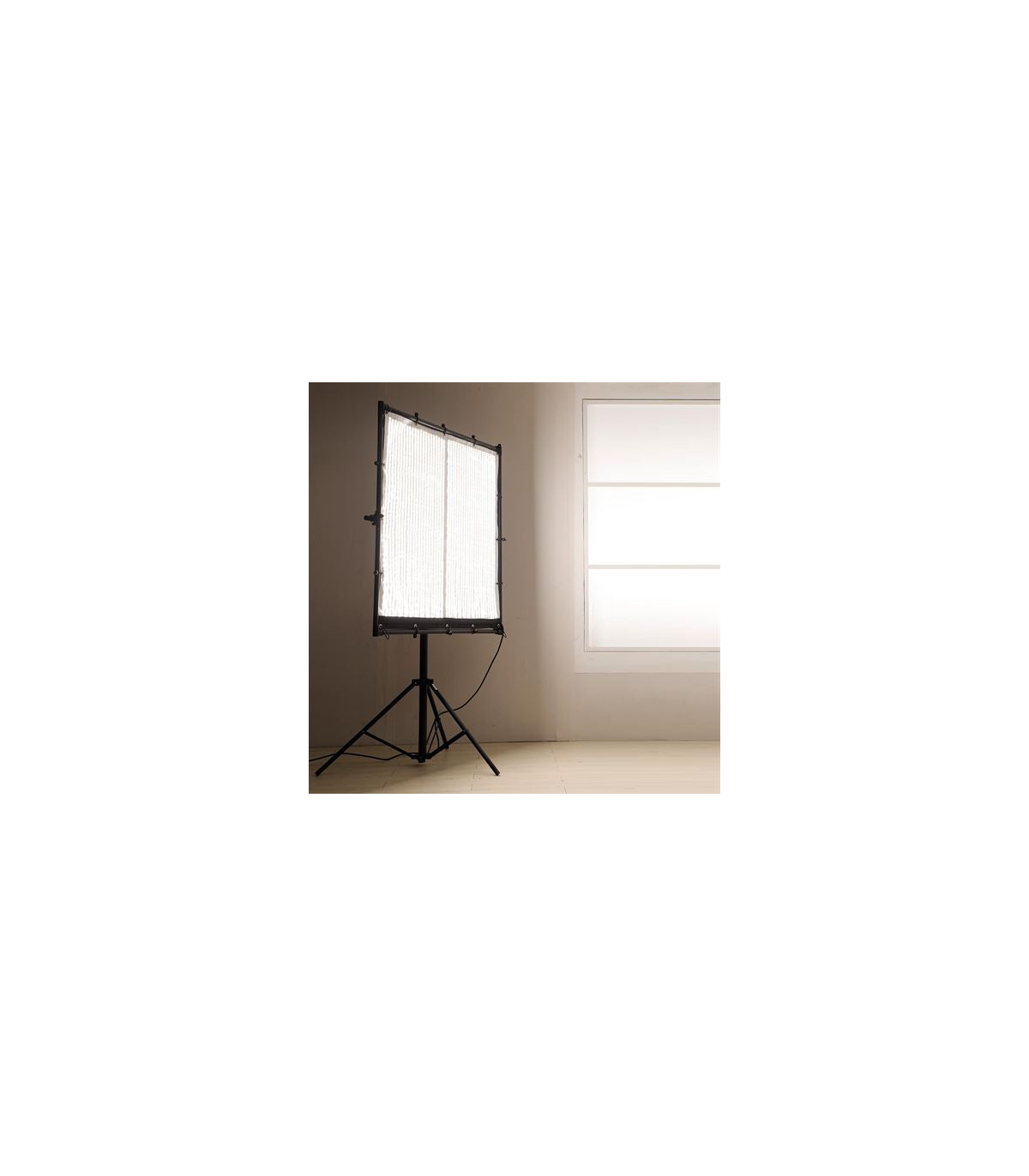

Mount the RX-7120 to the frame, using the fasteners provided. Then place the RX-7120 on a lamp stand (see recommendation for optional accessories). An adapter is supplied to allow you to adjust the angle of the RX-7120 in relation to the tripod. Steel cables are also supplied, which can be routed through the round orifices. This makes it possible to mount the RX-7120 to a truss or other construction. If desired, you can choose to tension the flat softbox or grid tightly in front of the LED mat.

Usage RX-7120

With the RX-7120 you have a versatile and lightweight solution, which can be used in many situations. Its impressive size and large amount of LEDs provide more than enough light output. Because the LED panel is thin and light, it can be placed almost anywhere. For example against the ceiling of a car during film shoots. Control is also possible via DMX512 or an optional RC-5 II remote control (see optional accessories). When you are not using the RX-7120, you can store the led panel folded up in the bag.

4 different modes

Through the menu you can control the RX-7120 with four different modes:

- CCT mode: brightness and color temperature (2700K-10,000K)

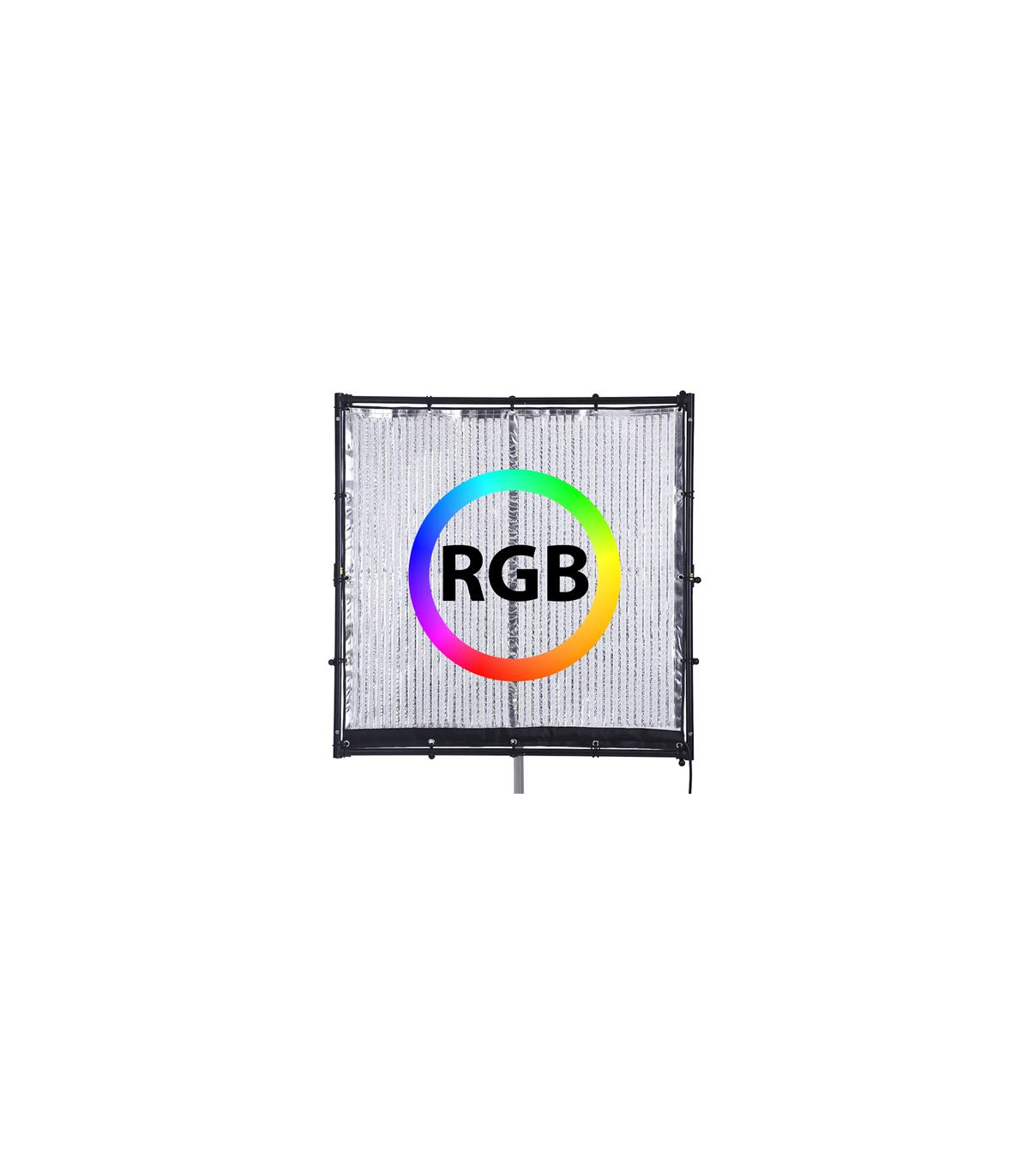

- RGB mode: Set any color (from 0 to 255)

- HSI mode: hue, saturation and intensity (0 to 100%)

- Theme mode: flashing lights, candlelight, thunderstorm (speed adjustable)

Connecting the DMX panel

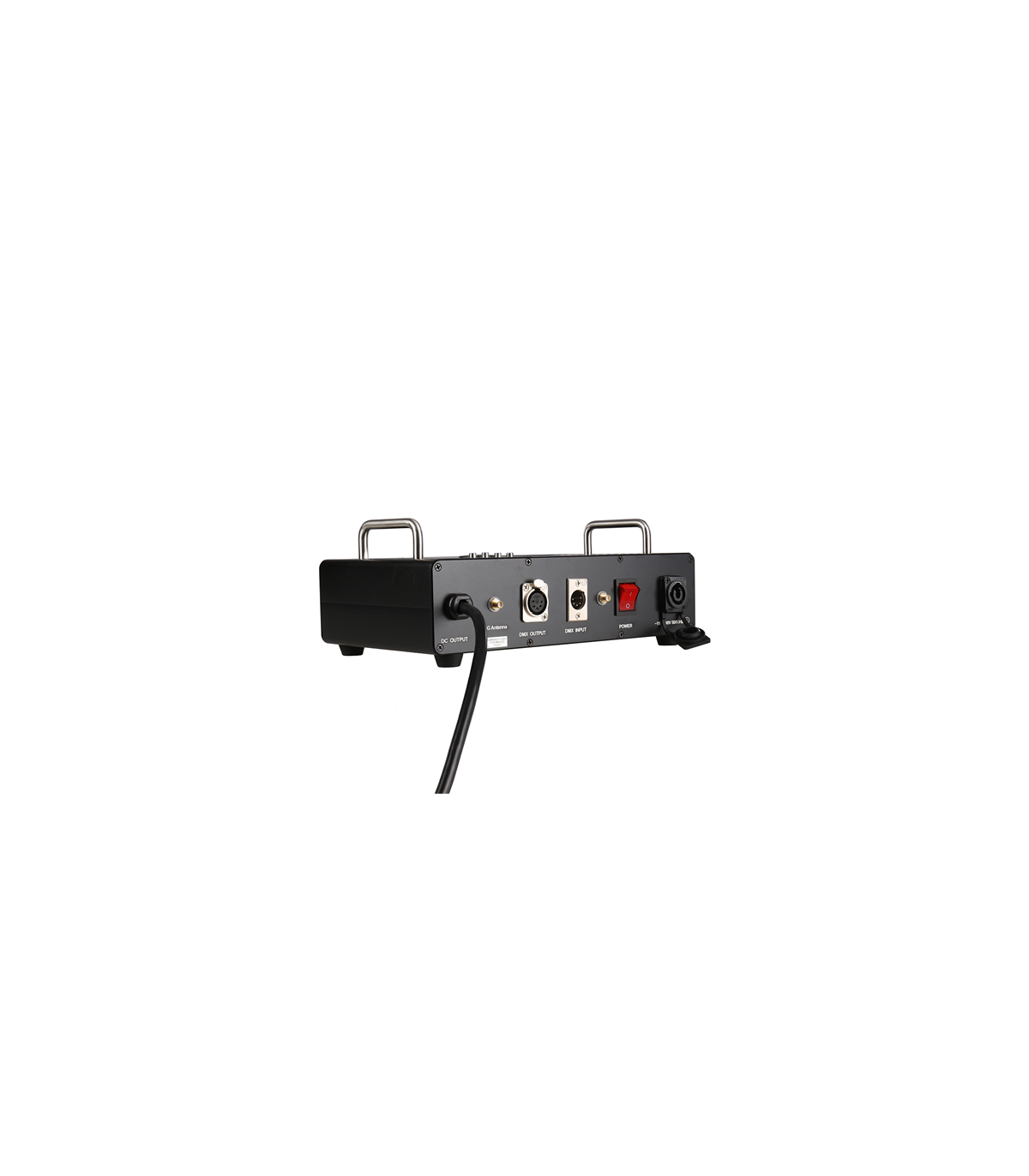

The lamp has a 5-pin XLR plug to connect to a DMX panel. This allows you to control the light based on the DMX512 protocol. The last picture shows this connection.

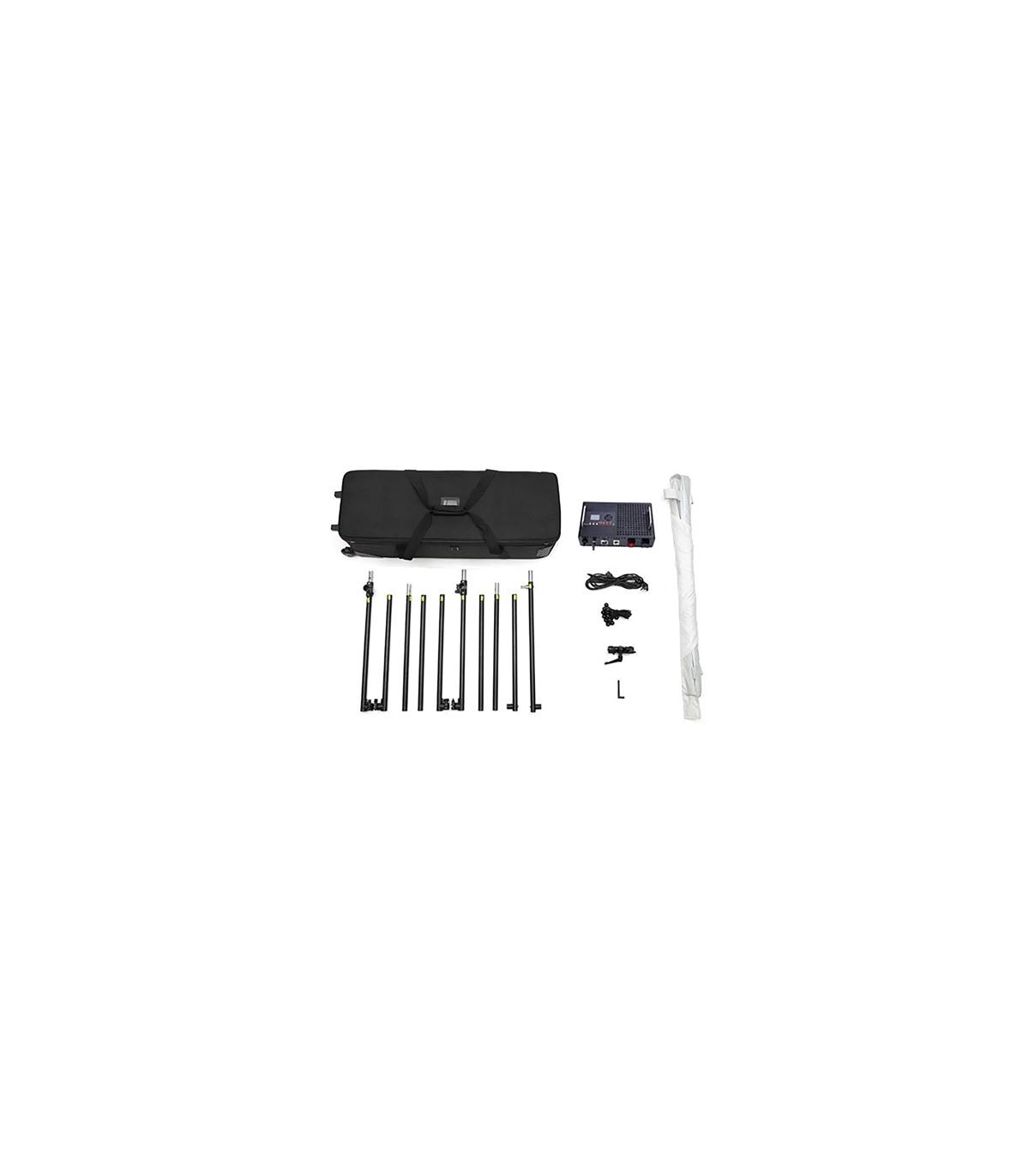

Included:

1x RX-7120 LED panel

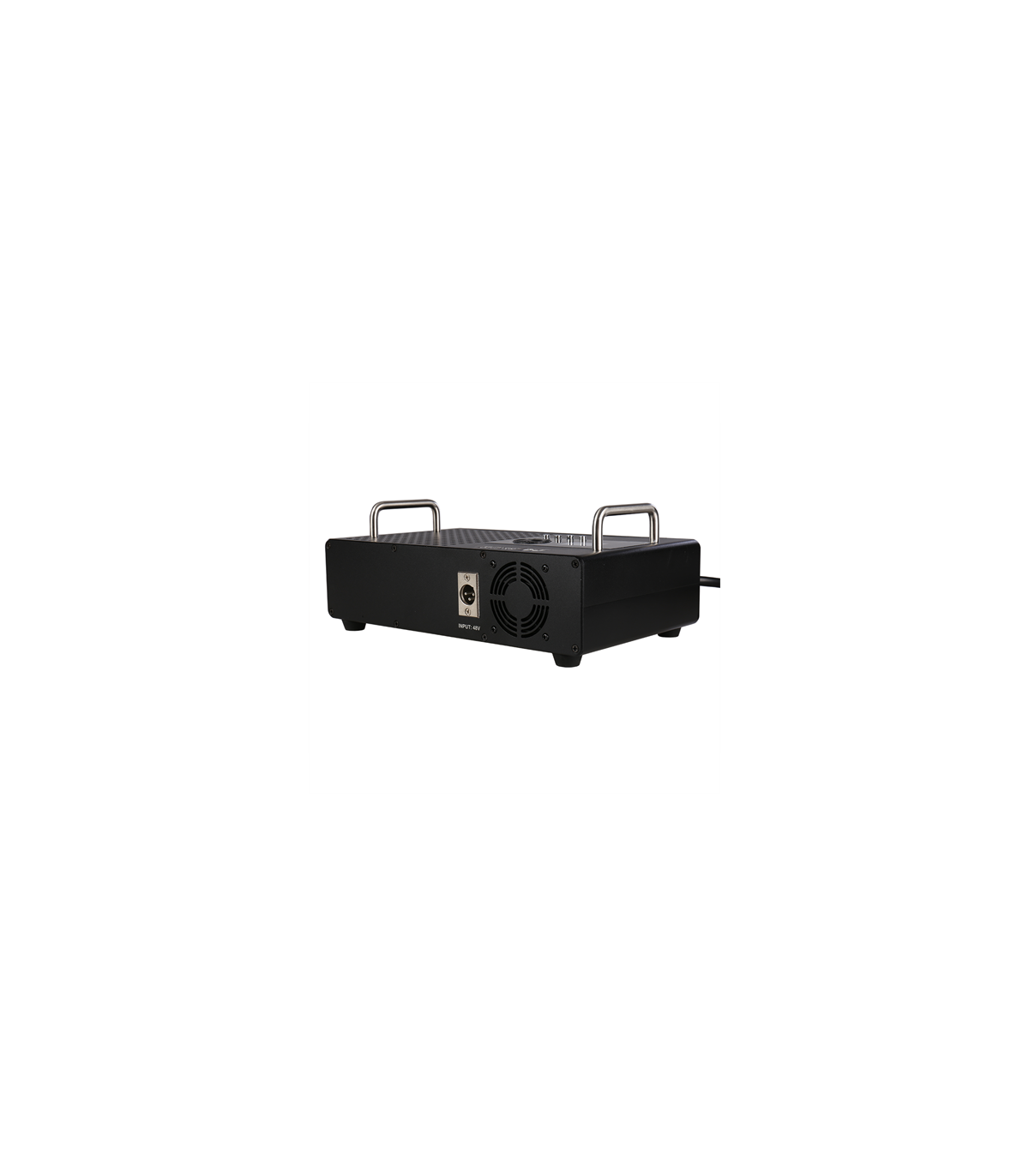

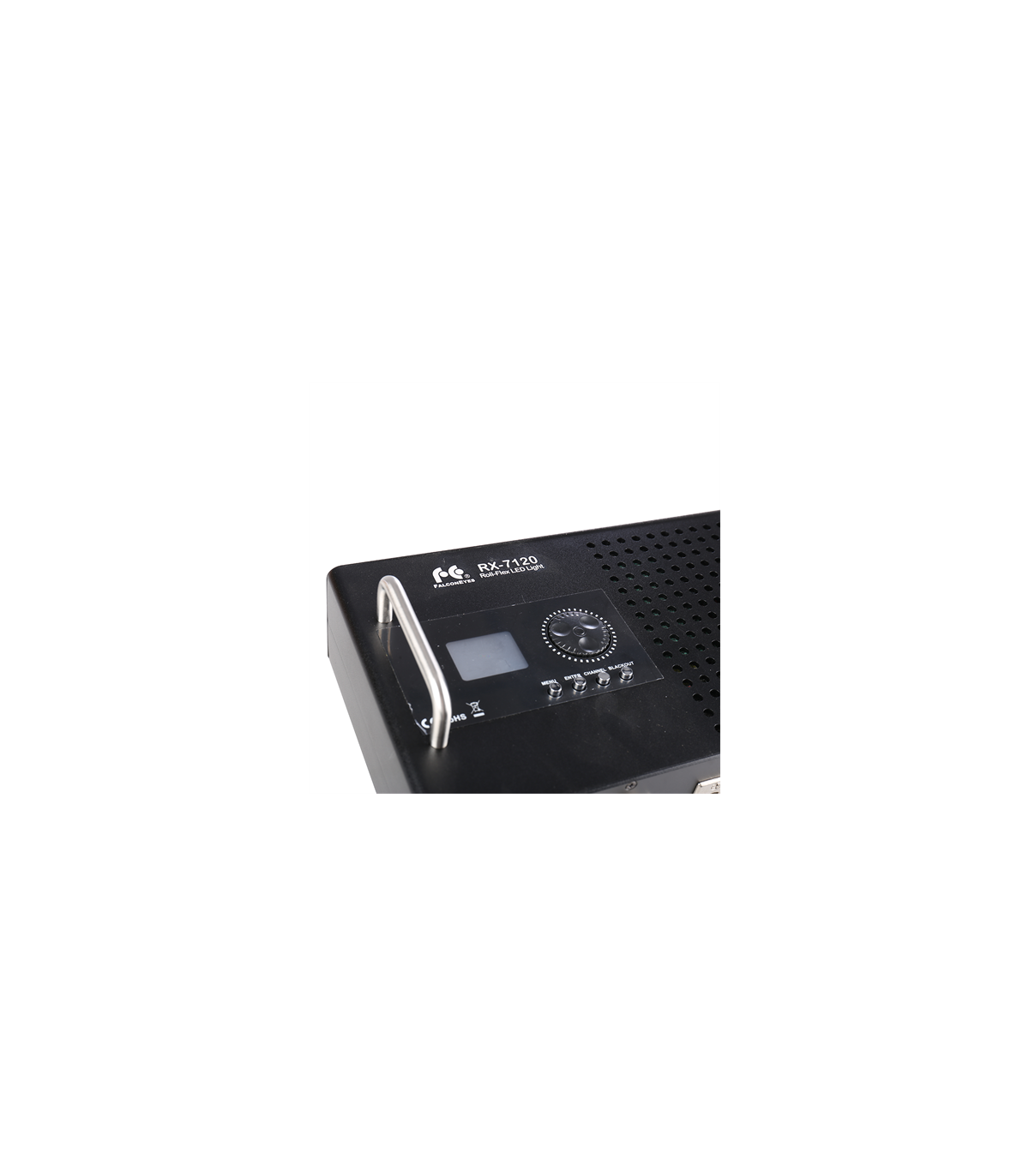

1x Controller with screen

1x Power cable

1x Frame for mounting

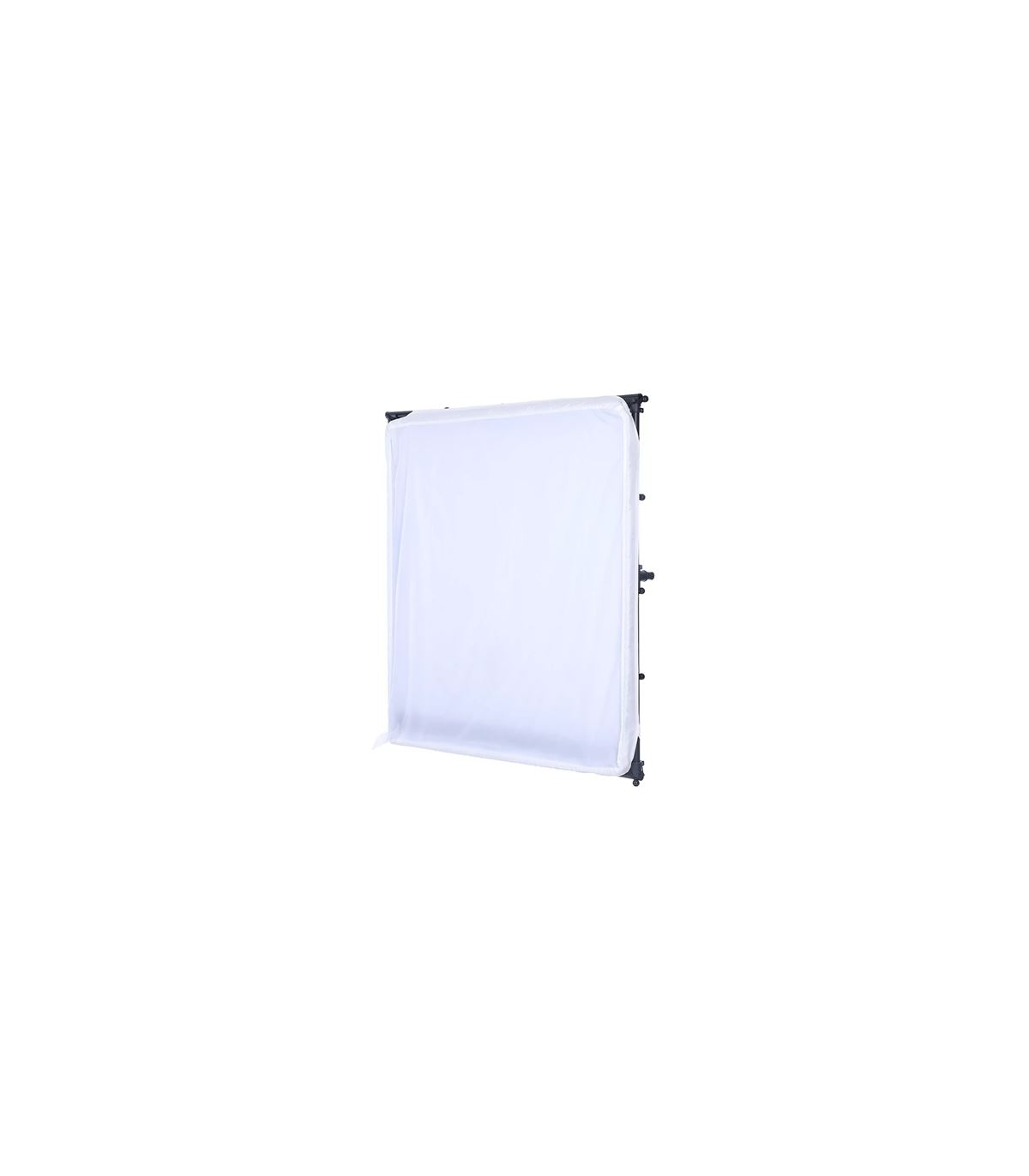

1x Softbox RX-120SB

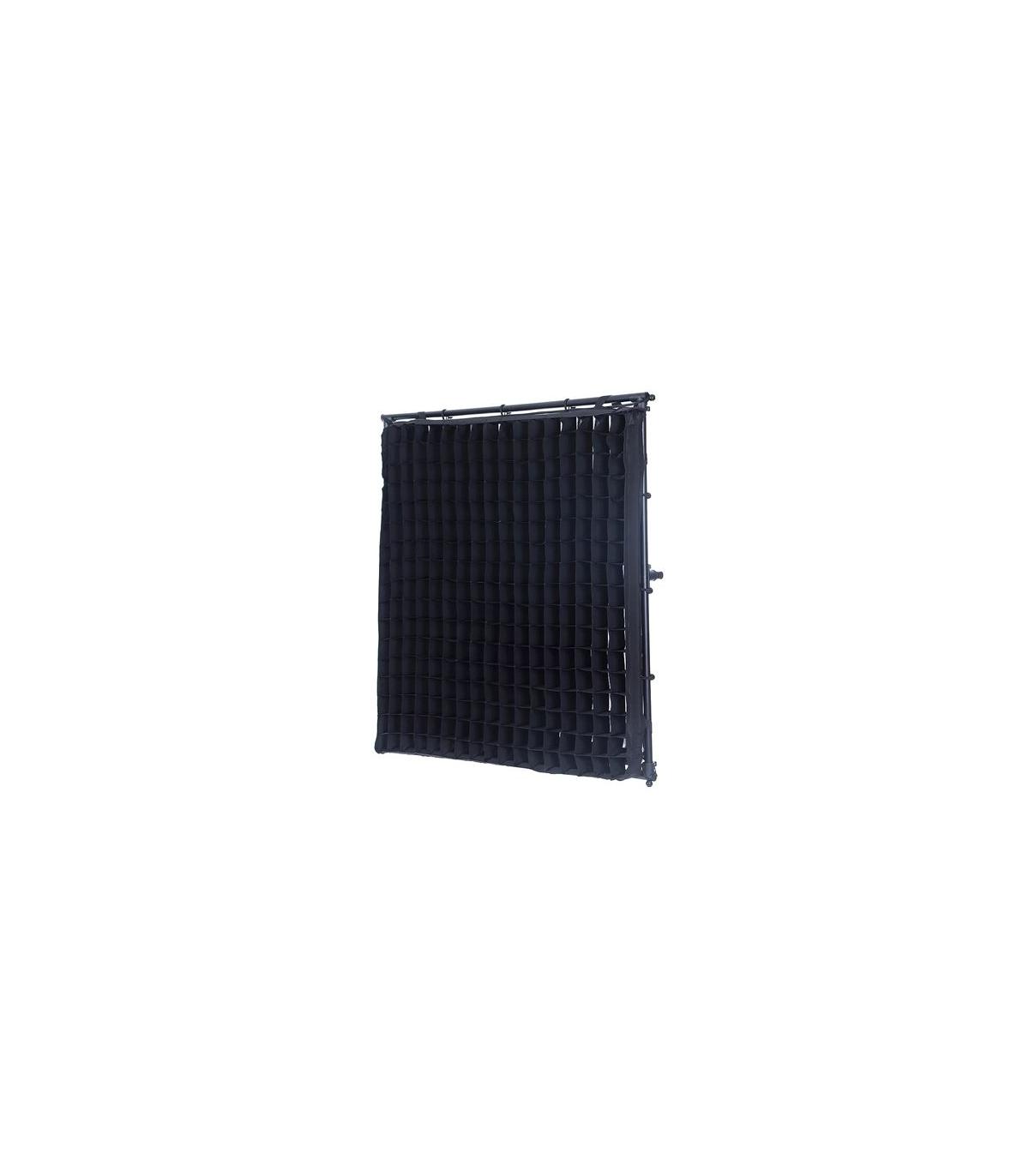

1x Grid RX-120HC

1x Spigot adapter (90°)

1x Steel cable set (4 pcs, 80 cm each)

1x Antenna

1x Extension Cable SP-XC08 (8m)

1x Transport bag

Caracteristici:

Number of LEDs: 5.280

Adjustability: Continuously variable

Dimensions: 1.21m x 1.21m

Weight: 3.27 kg (LED panel) 6.22 kg (controller)

Light Output (LUX) @ 0.5m: 3200K: 29300. 5600K: 32200.

Light Output (LUX) @ 1m: 3200K: 13.500. 5600K: 15.300.

Light Output (LUX) @ 2m: 3200K: 4.690. 5600K: 5.350.

CRI (Ra): 95+
