Boya BY-WM6S Linie Wireless UHF cu Microfon Lavaliera

Microfon lavaliera Boya BY-WM6S

Cod produs:
Adauga in lista de preferinte
Produsul nu mai face parte din oferta!

Boya BY-WM6S Linie Wireless UHF cu Microfon Lavaliera


Pentru jurnalisti de teren, vloggeri, Filmmaker si videografi

Compatibil cu smartphone, tableta, DSLR , camcorder, audio recorder

Transmisie UHF cu 48 canale

Microfon lavaliera omnidirectional inclus

Display LCDusor de citit

Port USB Type-C pentru reincarcare baterii

Constructie solida din metal

Pana la  70m raza de operare

Functie Mute

Iesire casti 3.5mm

Numar transmitatoare 1

Microfon incorporat Da

Tip microfon Lavaliera omni

Conector transmitator Fara conector

Conector casti Da

Tip receptor Portabil

Patina dedicata Nu

Banda comunicare UHF

Alimentare Prin dispozitivul USB Tip C

Tip transmitator Body pack

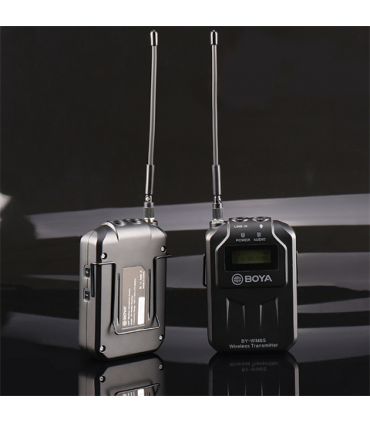

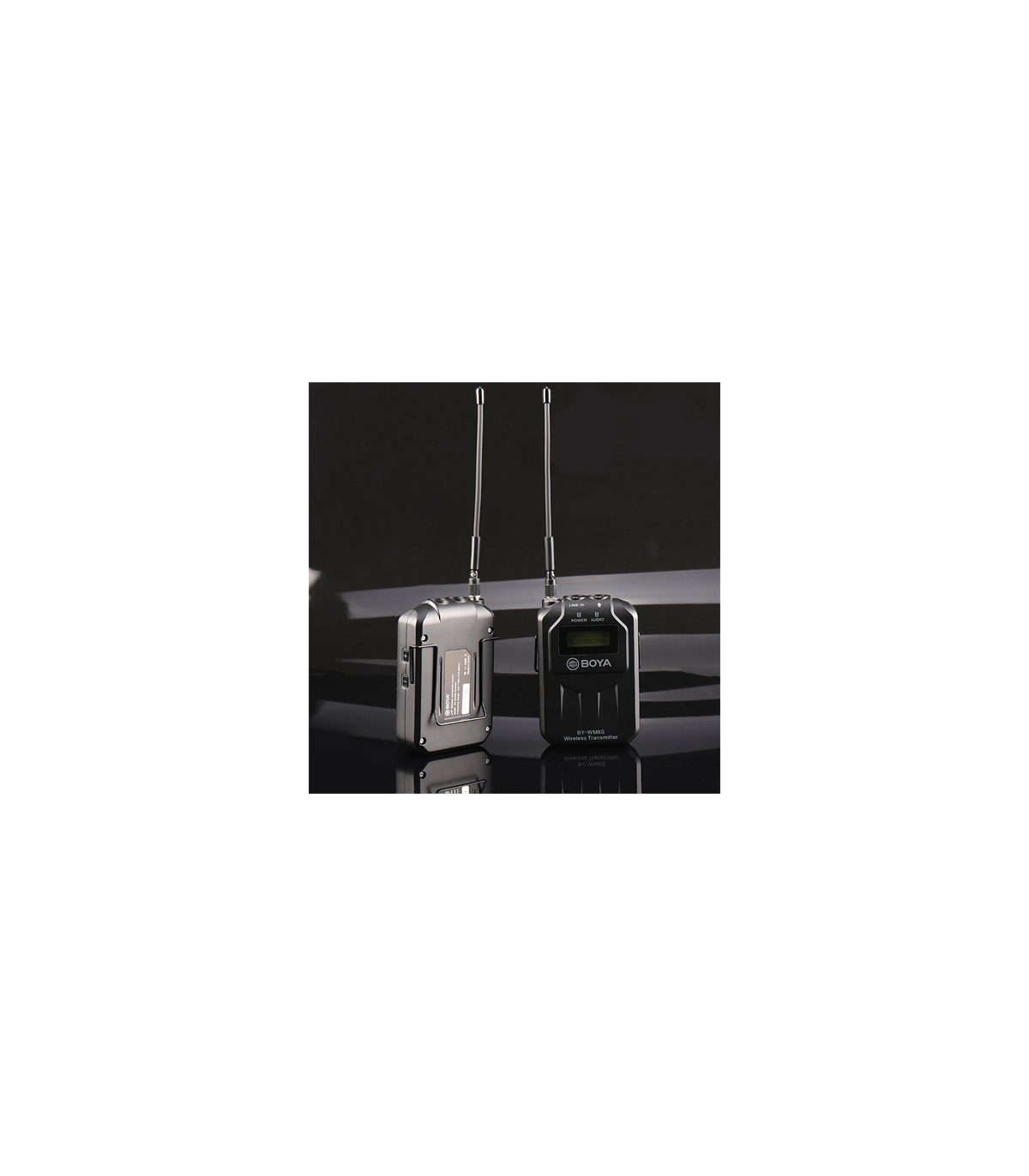

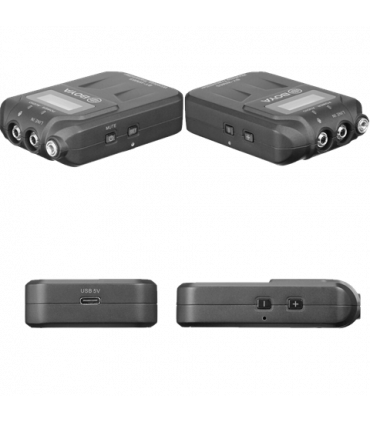

The Boya Lavalier Microphone BY-WM6S is a compact wireless microphone set for use with smartphones, DSLR cameras, camcorders and audio recorders. The Boya BY-WM6S uses the UHF frequency and works with frequencies between 556 and 576 Megahertz (Mhz). The transmitter and receiver have a metal housing and are equipped with an easy-to-read screen. A low filter is active as standard to suppress noise and contact noise. This ensures clear sound recordings time after time.

Boya's WM6S has a range of approximately 100 metres, when there are no obstacles between transmitter and receiver. Both the transmitter and receiver weigh only 149 grams and everything comes in a handy storage case.

UHF frequencies

Because UHF (ultra-high frequency) is used, the BY-WM6S can be used for both outdoor and indoor activities. UHF is less sensitive to interference than VHF (very high frequency). Electronic devices, metals and obstacles such as walls, ceilings and windows can have a negative influence on the signal. With a UHF set the chance of this happening is smaller and it is also possible to bridge a larger distance than VHF.

Application Boya UHF Dual Lavalier Microphone Wireless BY-WM6S

The Boya Lavalier Microphone BY-WM6S is a complete "Reporter kit" that is easy to use. The interviewer carries the microphone and transmitter. From the receiver a cable goes to the video camera or other recorder. It is possible to attach the receiver to, for example, your camera using the hot shoe adapter. The hot shoe adapter also has a 1/4" female thread, so you can easily mount the receiver on a tripod.

Warranty Boya BY-WM6S

The BY-WM6S is only available through this sales channel with a three-year warranty (after registration via the special warranty card included in the package).


Transmitter: 106 x 67 x 29 mm (W/H/D)

Receiver: 106 x 67 x 29 mm (W/H/D)


Transmitter: 149g (incl. 1600 mAh Lithium battery)

Receiver: 149g (incl. 1600 mAh Lithium battery)

Other specifications:

RF Modulation: GFSK (Gauss frequency Shift Keying)

Frequency band: UHF (556-576MHz)

Channels: 48

Frequency response: 40Hz to 18KHz (+/-3dB)

Signal/Noise: 82dB or more

Distortion: 0.1% or lesser

RF output level: 10 mW

Earphone output level: 30mW(16 Ω)

Reception sensitivity: -98dBm

Audio input connector: 3.5mm mini jack

Operation range: 100M

Power requirements: 1600 mAh Lithium battery

Battery life: Transmitter ± 10 hours

                   Receiver ± 10 hours

Charging time: ± 2.5 hours per battery.

Charging: DC5V (USB Type-C)

Consumption power: Transmitter: 3.3V/110 mA

One-way communication

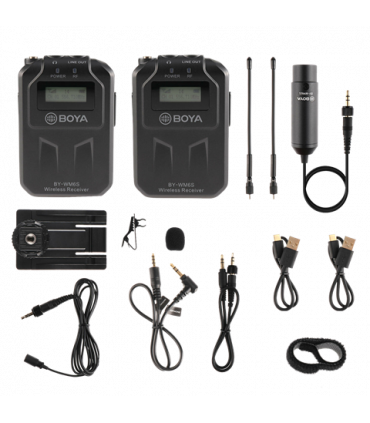

1x Transmitter (TX6S)

1x Receiver (RX6S)

1x Omni-directional Lavalier Microphone

1x 3,5 mm TRS to TRS Audio Output Cable

1x 3,5 mm TRS to TRRS Audio Output Cable

1x 3,5 mm TRS to XLR Male Output Cable

2x Type-C to USB-A connect cable

2x Belt Clip

1x Microphone Clip

1x Wind Screen

1x Cold-shoe Mount Adapter

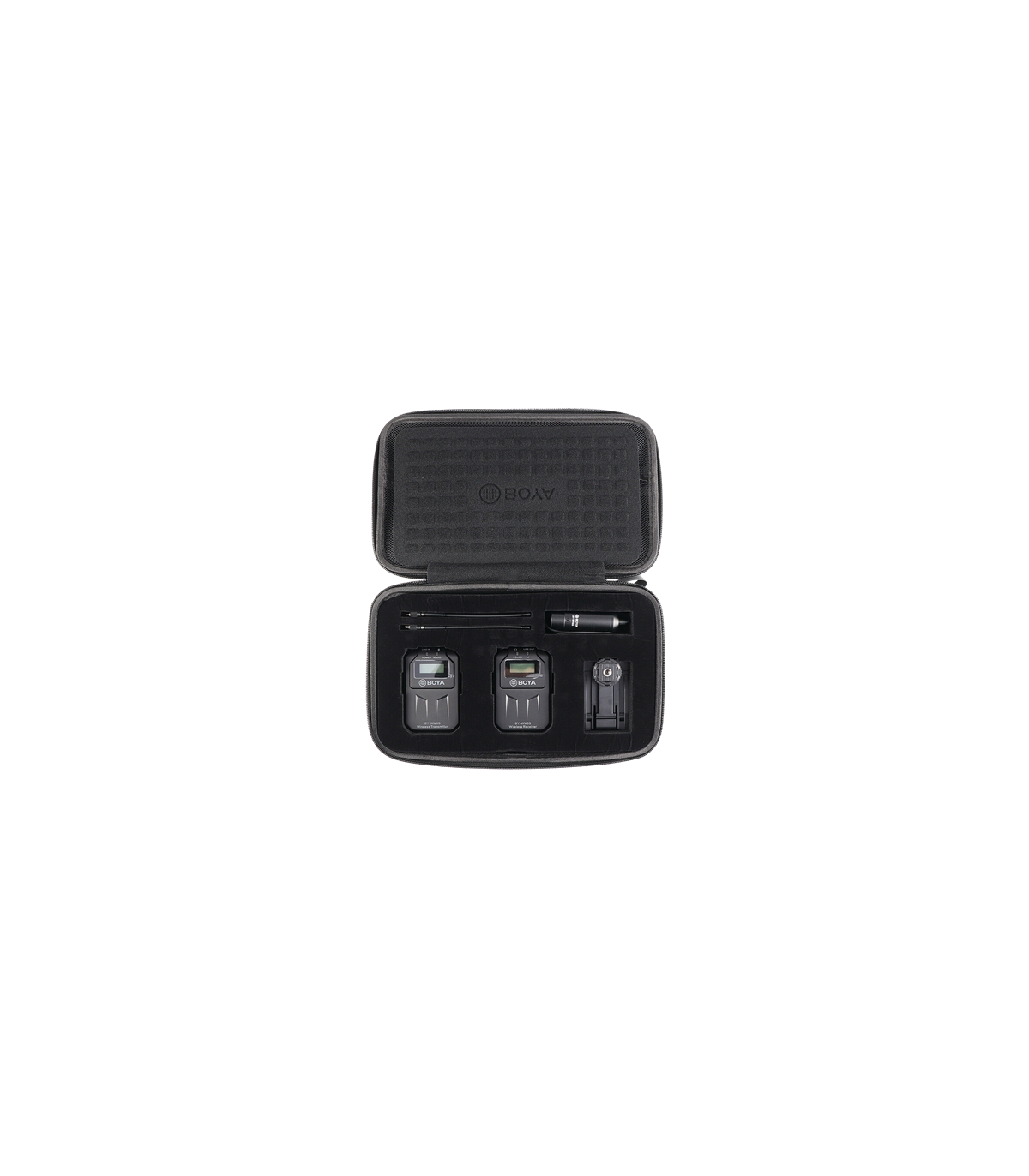

1x Storage Case

1x Manual


Suitable for: Single-lens reflex camera, Camcorder, Audio recorder, Smartphone, Laptop

Dimensions (mm): 208 x 67 x 29 mm (both transmitters and receiver)

Gewicht: ** grams (transmitters) / ** grams (receiver)

Frequency: 40Hz-18 KHz

Sensitivity: -98dBm

Signal to Noise Ratio: 82dB or more

Microphone connector: 3.5 mm mini jack plug

Power supply: Built-in battery (Li-ion)
